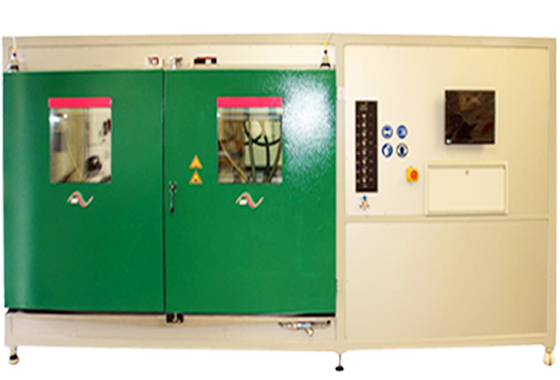

Pressure Fluctuation Test Bench For Automotive Cooling Parts

Features:

1、Designed to test automotive cooling parts, in particular radiators, rubber hoses and surge tanks

2、In explosion protect class 1, because of indirect chamber heating

3、Automatic leak detect and leak test (with automatic switching off of failed test parts)

4、Chamber entrance front and backside (Front twin door + Rear twin door)

Examples for practicable test specifications:

TL889、TL874 4.4、TL52361 6.1.1 / 6.1.2、TL52682 6.11 /6.12

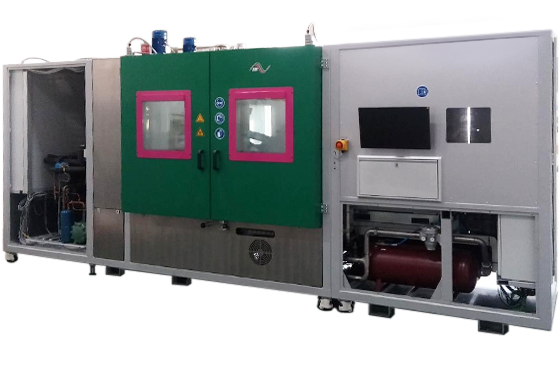

PVT Pressure Fluctuation Test Bench

Features:

1、Pressure Fluctuation test bench with linear and eccentric moving unit

2、Automatic leak detect and leak test (with automatic switching off, of failed test parts)

3、Automatic backflow pump for coolant leakage

Examples for practicable test specifications:

o VW 78007、TL 82048、TL 81165、TL 874 (4.4)

o PV 1712 (Ag-99-03)、GMW 3155

o PTL14052-A1203、PTL14100-A0911

o BMW LH 10356681 (10.5)、LH 10757369 (6.)、 QV 17004

o Daimler M139 (2), M177 (2)

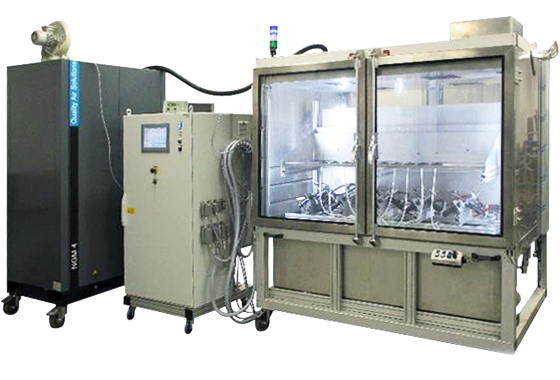

Air Charge Hose Tester (With 3-D Moving Unit)

Features:

1、Designed to test automotive motor parts, in particular charge air components

2、Pressures in the range from -0.5 to max. 5 bar possible

3、 Automatic leak detect and leak test (with automatic switching off of failed test parts)

4、With an integrated moving unit for tests with a superimposed 3D – moving

Examples for practicable test specifications:

GMW16153 、TL VW60562、Fiat 9.02132-01、BMW 10403165-03、Ford ESBB53-6C646-AA、LH 10354886

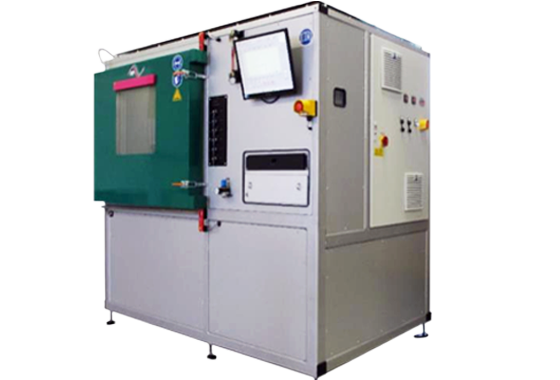

Test Bench For Cooling Water Surge Tank

Features:

1、Designed to perform tests on surge tanks

2、Adjustable static pressure in the range from 0 to max. 5bar

3、Adjustable flow rate per specimen from min. 0 to max. 8 l/h

4、 In explosion protect class 1, because of indirect chamber heating

5、Automatic leak detect and leak test (with automatic switching off of failed test parts)

Examples for practicable test specifications:

VW, TL889、ESDG93-8A080-AA、 GMW15310、QV17004D、PLB-A2B-Z

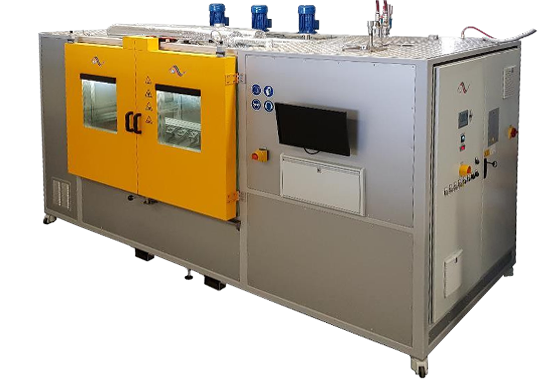

Test Bench For Spray Nozzles

Features:

1、Designed to test automotive spray nozzles in climatic chambers, e.g. windshield cleaning nozzles (WCS) and headlight cleaning nozzles (HCS)

2、Especially developed for tests with explosive / flammable fluids

3、In explosion protect class 1, because of the nitrogen inertisation of the test cell

4、Suction with explosion prevention to remove flammable fumes and smells from the test cell

5、Tempering of the test cell and the fluid depends on the ambient temperature

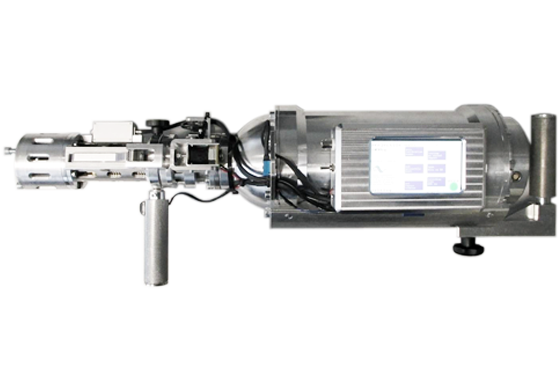

Mobile Impactor

Features:

1、Designed for material tests in the aviation and the railway sector

2、Available with different projectiles (different weights, different projectile heads)

3、 Effective energy adjustable from 3 to 140 Joule, by means of supplied filling station

4、Data recording with 50kHz sampling rate for distance, speed, acceleration

5、Dimensions Impactor: 270 x 600 x 200mm (w x h x d)

6、Impact energy: max. 140 J at 6 bar
